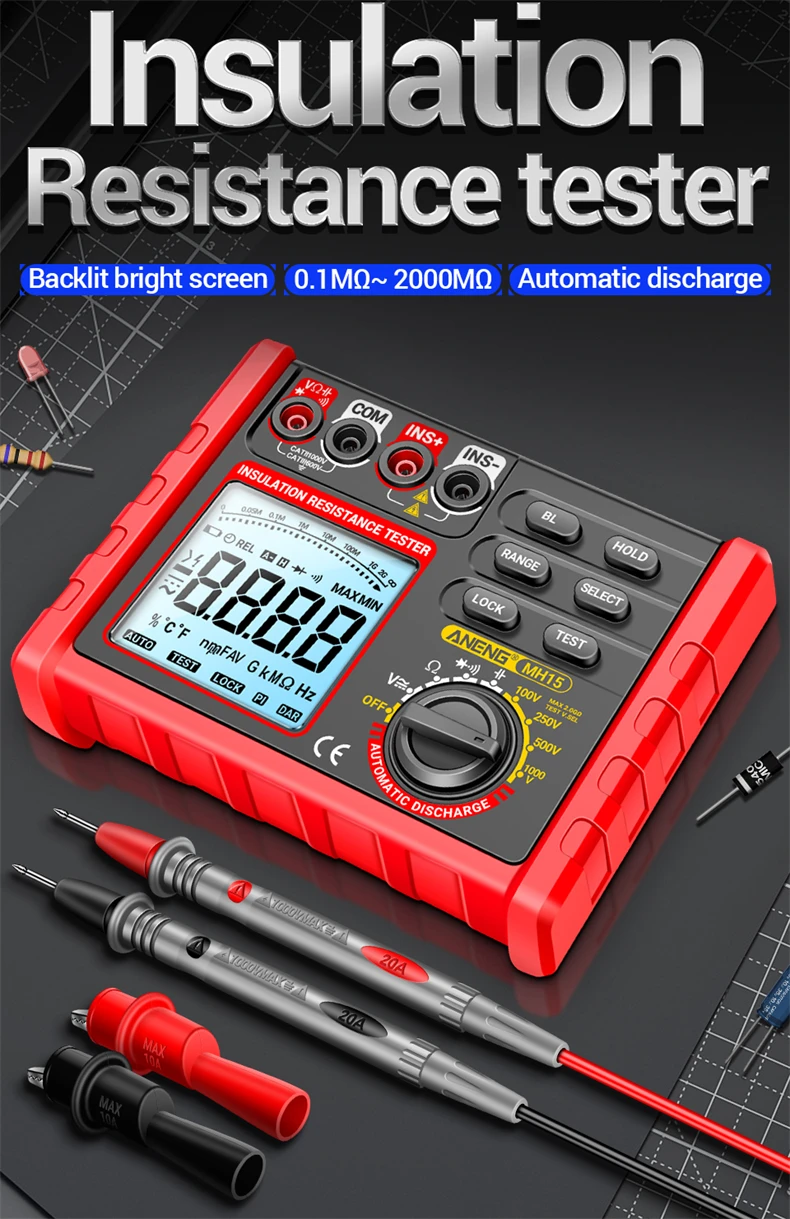

Aneng MH15 Insulation Resistance Tester

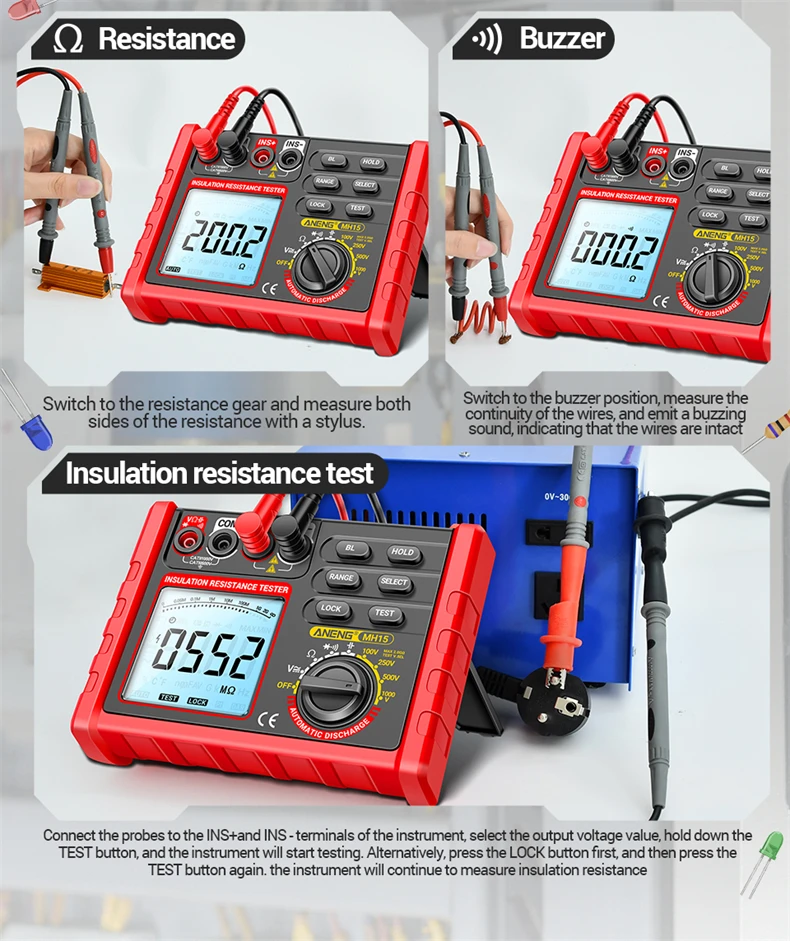

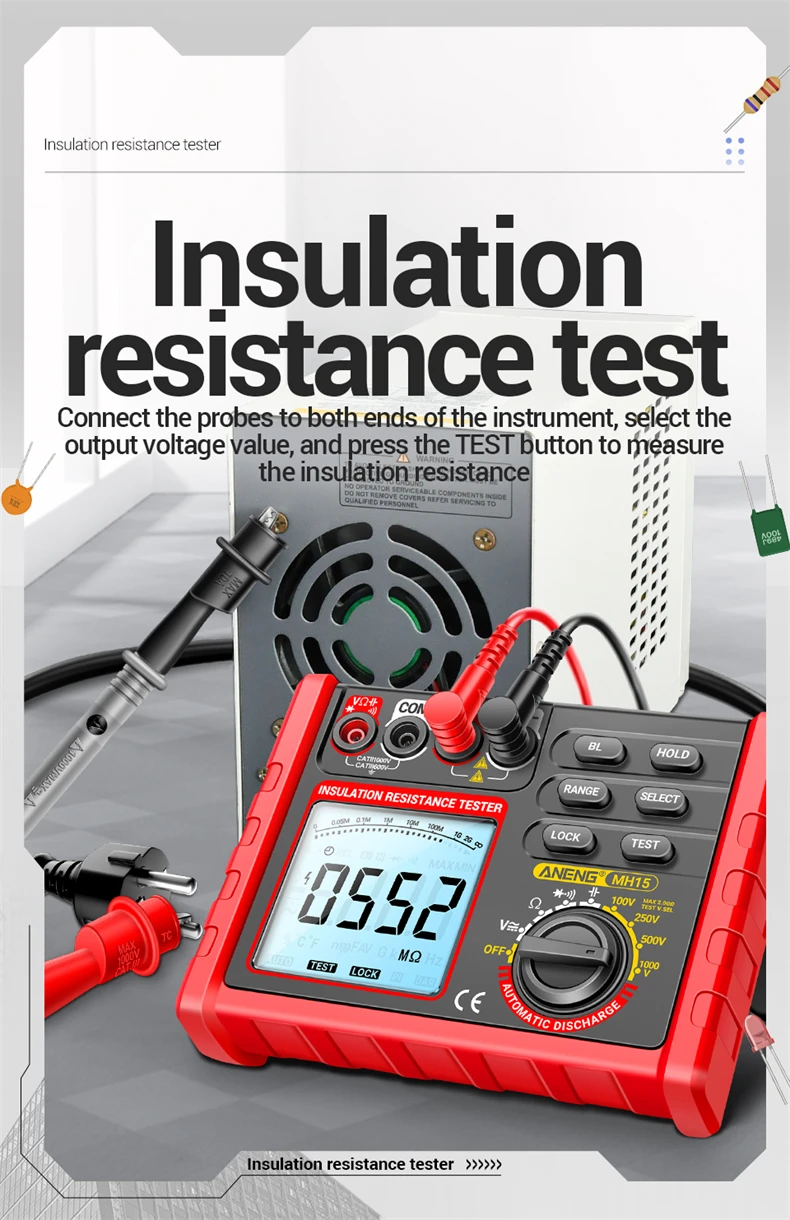

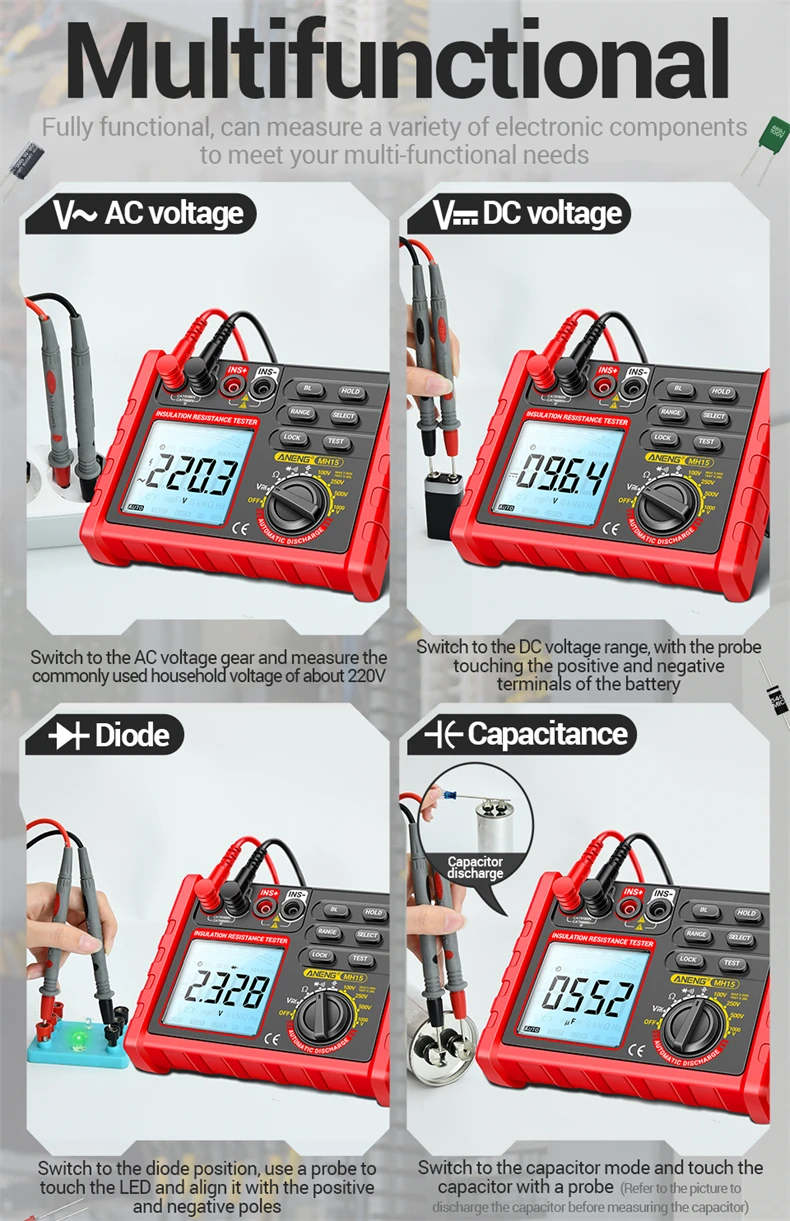

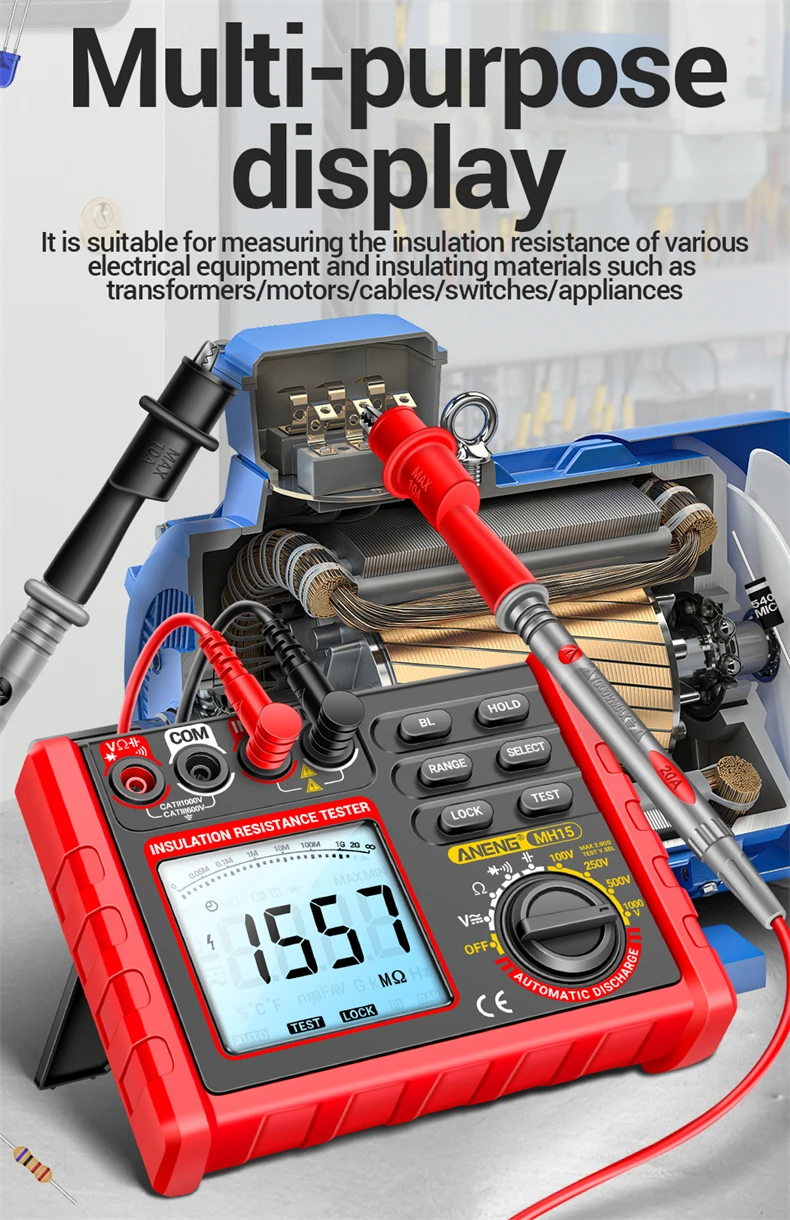

This instrument is a battery powered insulation resistance tester that can be used to measure DC voltage, AC voltage, resistance, on-off, diode and insulation resistance. When measuring insulation resistance, there are four test voltages to choose from: 100V, 250V, 500V and 1000V. This instrument has polarity indication, over range indication, data retention, automatic retention and other functions. It is simple to use and is a precision measuring instrument.

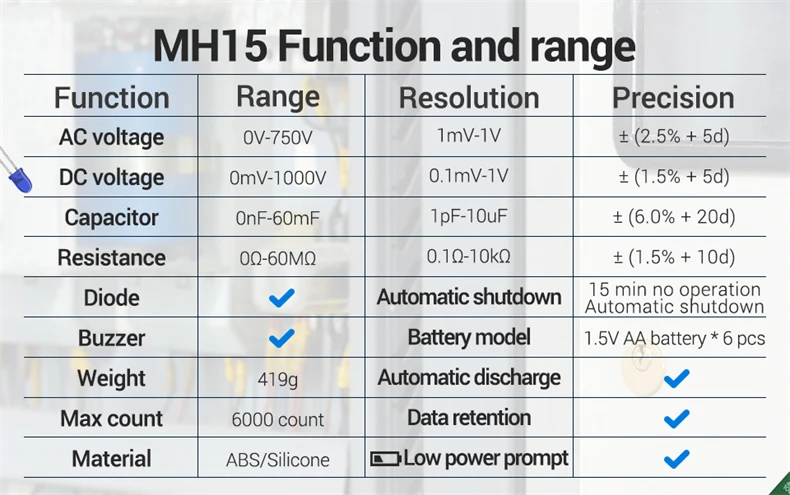

Specifications:

Function	Range	Resolution	Rrecision
AC Voltage	0V-750V	1mV-1V	±(2.5%+5d)
DC Voltage	0V-1000V	0.1mV-1V	±(1.5%+5d)
Capacitance	0mF-60mF	1pF-10uF	±(6.0%+20d)
Resistance	0Ω-60MΩ	0.1kΩ-10kΩ	±(1.5%+10d)
Diode	√	Automatic Shutdown	15 minutes without operation

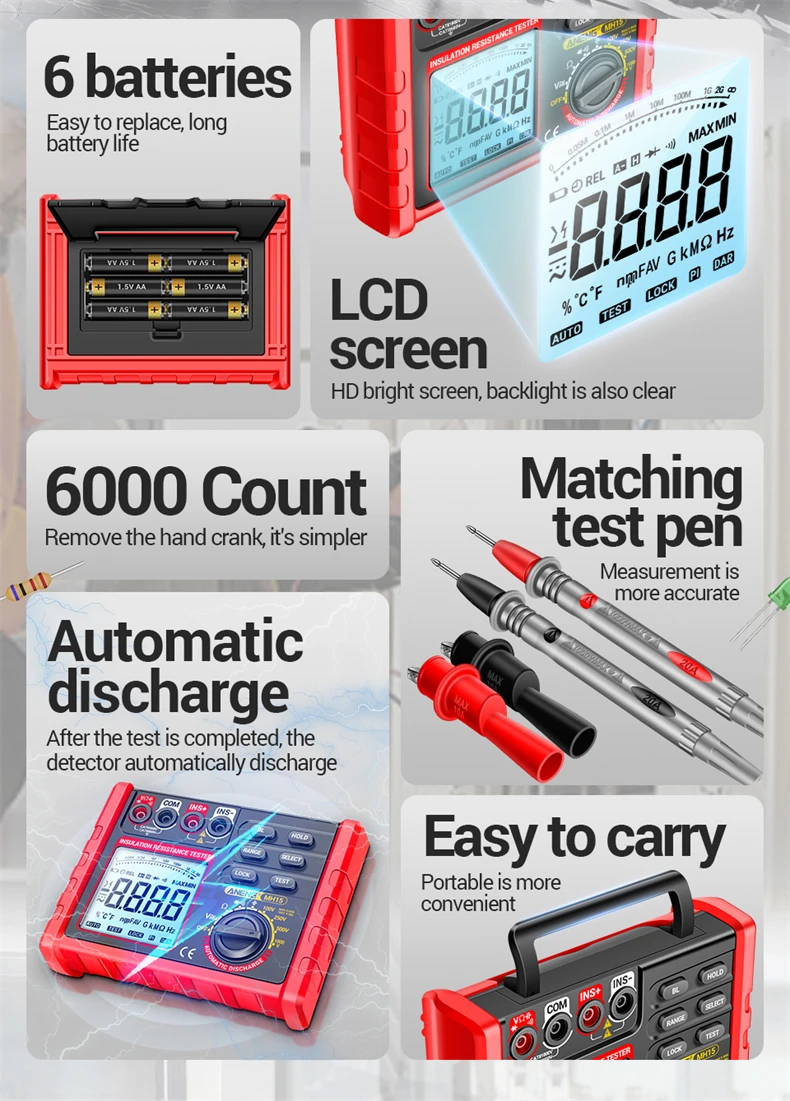

Buzzer	√	Use Battery Type	1.5V AA battery X 6
Weight	419g	Automatic discharge	√
Max Count	6000 Counts	Data retention	√

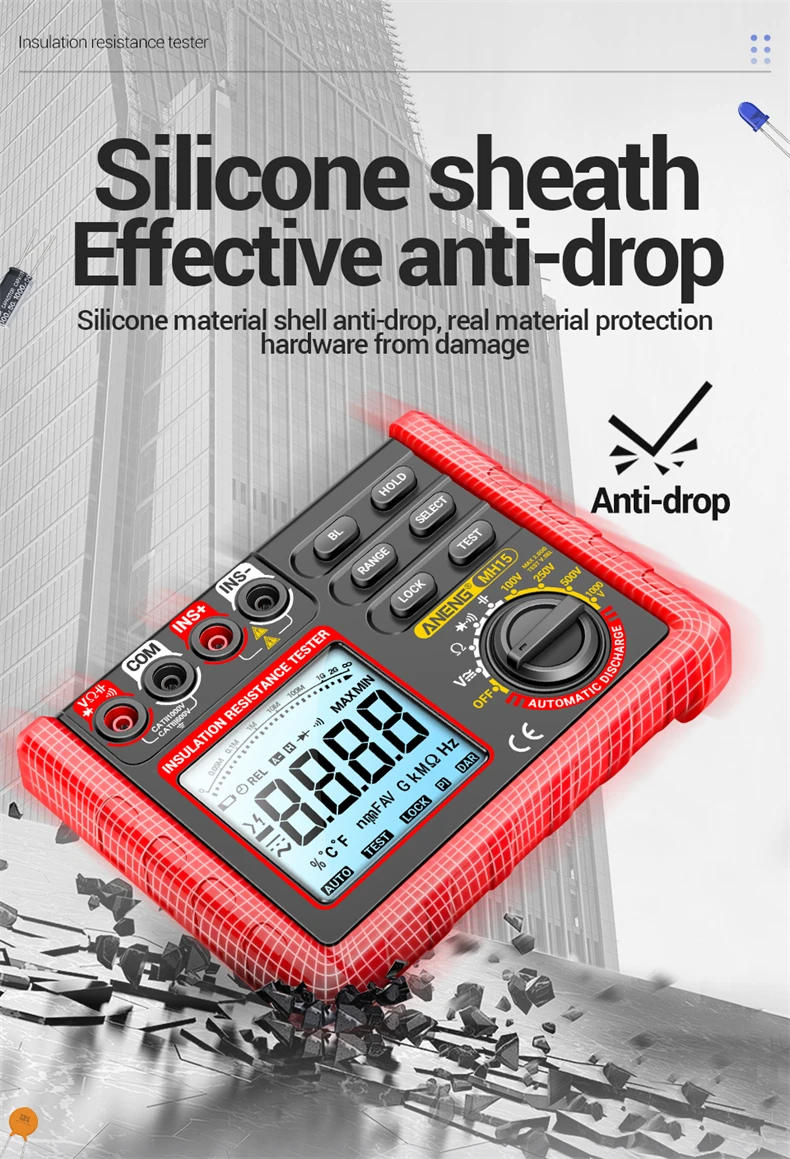

Material	ABS/Silicone	Low power prompt	√

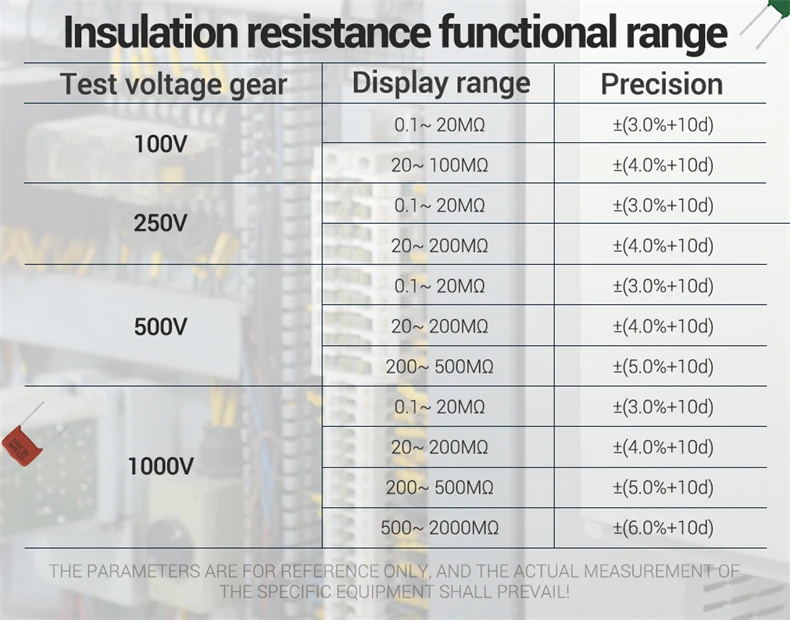

Test voltage gear	Display range	Precision
100V	0.1~20MΩ	±(3.0%+10d)
	20~100MΩ	±(4.0%+10d)
250V	0.1~20MΩ	±(3.0%+10d)
	20~200MΩ	±(4.0%+10d)
500V	0.1~20MΩ	±(3.0%+10d)
	20~200MΩ	±(4.0%+10d)
	200~500MΩ	±(5.0%+10d)
1000V	0.1~20MΩ	±(3.0%+10d)
	20~200MΩ	±(4.0%+10d)
	200~500MΩ	±(5.0%+10d)
	500~2000MΩ	±(6.0%+10d)

THE PARAMETERS ARE FOR REFERENCE ONLY,AND THE ACTUAL MEASUREMENT OF THE SPECIFIC EQUIPMENT SHALL

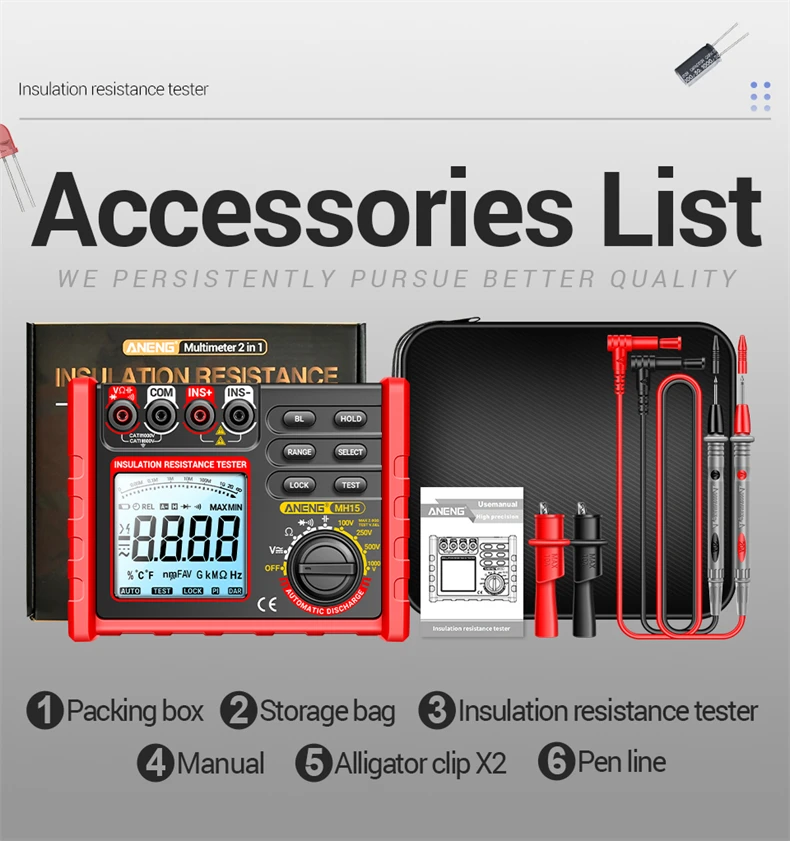

Packing List:
1 X MH15 Insulation Resistance Tester(without battery)

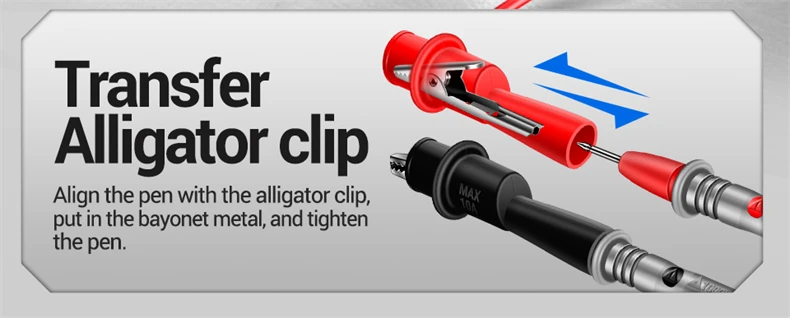

2 X Alligator Clips
2 X Test Lead
User Manual

Storage Bag

Packing Box
